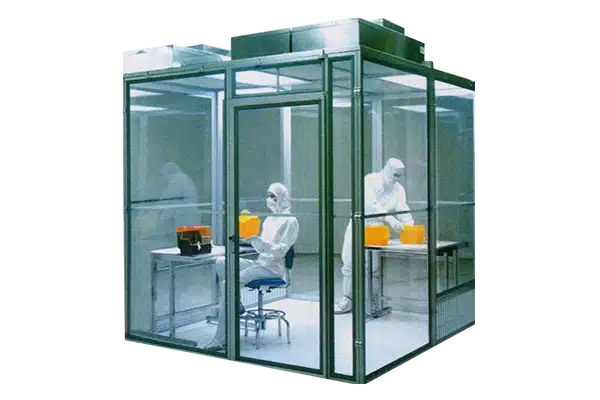

Clean Booth Station

Clean Booth-Station is a simple clean room, which established in the most quickly and conveniently. It shall have different clean grade and space assortment, which can be designed and manufactured according to the applying purpose. Its main features can make you with easy operating and installing, flexible, short construction period and good mobility. Simultaneously, it also can install additionally in normal grade clean room but required partial high grade clean spaces in order to save cost. At present, CLEAN ROOM is already becomes a vital facility in semiconductor trade, bio-chemistry trade, pharmaceutical trade and food trade, and became more increasingly. Certainly the requirements to clean grade also became higher, and the manufacturing cost of CLEAN ROOM become higher accordingly.

Product Description

CBA Series

潔淨度 Clean Grade Class 1~10
型號 Model CBA-24S CBA-54S CBA-74S
外部尺寸 External DIM
WxDxH (mm)
750x1800x2500 1500x1800x2500 2000x1800x2500
內部尺寸 Inner DIM
W1xD1xH1 (mm)
650x1300x2000 1000x1300x2000 1900x1300x1200
風速
Air Velocity (m/s)
0.45 ± 0.05 m/s
結構
Meterial
天板 / 本體
Ceiling / Frame
    冷作鋼板烤漆 / 不鏽鋼板
Cold rolled painting / stainless steel
腳架
Brace
烤漆方管 / 不鏽鋼方管
Painting square metal duct
※ Square stainless steel duct
周圍
Wall
 抗靜電防塵簾
PVC anti-static curtains
照明
Lighting
20Wx2 40Wx2 40Wx2
集塵效率
Efficiency
99.99%以上  0.3μm
Over 99.99% 0.3μm
HEPA  尺寸 Size 610x1220x150 610x1220x150 610x1220x150
數量 Quantity 1 2 3
消耗電力
Power consumption
0.4 KW 0.4 KW x 2 0.4 KW x 3



CBB Series

潔淨度 Clean Grade Class 100
型號 Model CBB-44S CBB-84S CBB-124S
外部尺寸 External DIM
WxDxH (mm)
1300x1300x2500 2500x1300x2500 3800x1300x2500
內部尺寸 Inner DIM
W1xD1xH1 (mm)
1200x1200x2000 2400x1200x2000 3700x1200x2000
風速
Air Velocity (m/s)
620 times/hr 640 times/hr 640 times/hr
結構
Meterial
天板 / 本體
Ceiling / Frame
    冷作鋼板烤漆 / 不鏽鋼板
Cold rolled painting / stainless steel
腳架
Brace
烤漆方管 / 不鏽鋼方管
Painting square metal duct
※ Square stainless steel duct
周圍
Wall
 抗靜電防塵簾
PVC anti-static curtains
照明
Lighting
20Wx2 40Wx2 40Wx2
集塵效率
Efficiency
99.99%以上  0.3μm
Over 99.99% 0.3μm
HEPA  尺寸 Size 610x1220x150 610x1220x150 610x1220x150
數量 Quantity 1 2 3
消耗電力
Power consumption
0.4 KW 0.4 KW x 2 0.4 KW x 3



CBC Series

潔淨度 Clean Grade Class 1000
型號 Model CBC-64-S CBC-84-S CBC-86-S
外部尺寸 External DIM
WxDxH (mm)
1200x1800x2500 1200x2400x2500 2400x1800x2500
內部尺寸 Inner DIM
W1xD1xH1 (mm)
1100x1700x2000 1100x2300x2000 2300x1700x2000
風速
Air Velocity (m/s)
236 times/hr
結構
Meterial
天板 / 本體
Ceiling / Frame
    冷作鋼板烤漆 / 不鏽鋼板
Cold rolled painting / stainless steel
腳架
Brace
烤漆方管 / 不鏽鋼方管
Painting square metal duct
※ Square stainless steel duct
周圍
Wall
 抗靜電防塵簾
PVC anti-static curtains
照明
Lighting
40Wx2 40Wx2 40Wx2
集塵效率
Efficiency
99.99%以上  0.3μm
Over 99.99% 0.3μm
HEPA  尺寸 Size 610x610x150 610x910x150 610x610x150
數量 Quantity 1 1 2
消耗電力
Power consumption
0.25 KW 0.4 KW 0.25 KW x 2



CBD Series

潔淨度 Clean Grade Class 10000
型號 Model CBD-84-S CBD-85-S CBD-86-S
外部尺寸 External DIM
WxDxH (mm)
1200x2400x2500 1500x2400x2500 1800x2400x2500
內部尺寸 Inner DIM
W1xD1xH1 (mm)
1100x2300x2000 1400x2300x2000 1700x2300x2000
風速
Air Velocity (m/s)
177 times/hr 141 times/hr 118 times/hr
結構
Meterial
天板 / 本體
Ceiling / Frame
    冷作鋼板烤漆 / 不鏽鋼板
Cold rolled painting / stainless steel
腳架
Brace
烤漆方管 / 不鏽鋼方管
Painting square metal duct
※ Square stainless steel duct
周圍
Wall
 抗靜電防塵簾
PVC anti-static curtains
照明
Lighting
40Wx2 40Wx2 40Wx2
集塵效率
Efficiency
99.99%以上  0.3μm
Over 99.99% 0.3μm
HEPA  尺寸 Size 610x610x150 610x610x150 610x610x150
數量 Quantity 1 1 1
消耗電力
Power consumption
0.25 KW 0.25 KW 0.25 KW

※ 特殊尺寸或規格可依客戶需求製作。
※ Special dimension can be customized.
